There’s a silent language spoken by every vehicle on the road, a language of precise measurements and critical connections that keeps us safe and our rides running smoothly. And when it comes to wheels, nothing speaks louder or more importantly than the bolt pattern. If you’ve ever found yourself staring at a new set of wheels, a tire shop diagram, or even your own car’s hub, wondering, “Will this fit?” then you’ve likely come face-to-face with the enigma of the bolt pattern. Specifically, the 5-lug bolt pattern is one of the most common configurations out there, yet it holds a surprising amount of complexity.
Trust me, I’ve been there. I remember a particularly frustrating Saturday trying to mount a set of beautiful aftermarket wheels on my project car, only to discover, after much sweat and a few choice words, that the bolt pattern was just *slightly* off. It felt like a puzzle piece that almost fit, but not quite – a millimeter here, a fraction of an inch there, and suddenly, your dream wheels are just expensive garage art. That day, I learned the hard way that precision is paramount, and having a reliable printable 5 lug bolt pattern chart at your fingertips is not just convenient; it's absolutely essential.
This isn't just a technical deep dive; it's your comprehensive companion to understanding, identifying, and confidently working with 5-lug bolt patterns. Whether you're a seasoned gearhead looking to optimize your knowledge, a curious DIYer embarking on your first wheel swap, or simply someone who wants to make an informed decision about your vehicle's footwear, you're in the right place. We'll cut through the jargon, illuminate the crucial details, and provide you with actionable insights that will save you time, money, and a whole lot of frustration. By the end of this guide, you won't just know what a 5-lug bolt pattern is; you'll be an expert at deciphering its secrets, choosing the right wheels, and ensuring your ride is as safe as it is stylish. Let's roll!
Table of Contents
- [The Unsung Hero: Understanding Your 5-Lug Bolt Pattern](#the-unsung-hero-understanding-your-5-lug-bolt-pattern)
- [Demystifying the Numbers: Common 5-Lug Bolt Pattern Formats](#demystifying-the-numbers-common-5-lug-bolt-pattern-formats)
- [Your Essential Companion: The Printable 5 Lug Bolt Pattern Chart Explained](#your-essential-companion-the-printable-5-lug-bolt-pattern-chart-explained)
- [Beyond the Chart: Mastering Manual 5-Lug Bolt Pattern Measurement](#beyond-the-chart-mastering-manual-5-lug-bolt-pattern-measurement)
- [Vehicle-Specific Wisdom: Matching Your Ride with the Right 5-Lug Pattern](#vehicle-specific-wisdom-matching-your-ride-with-the-right-5-lug-pattern)
- [The Perils of Mismatch: Why 5-Lug Bolt Pattern Precision is Non-Negotiable](#the-perils-of-mismatch-why-5-lug-bolt-pattern-precision-is-non-negotiable)
- [Unlocking Customization: Adapters, Spacers, and 5-Lug Conversions](#unlocking-customization-adapters-spacers-and-5-lug-conversions)
- [The Full Wheel Story: Hub Bore, Offset, and Their 5-Lug Connection](#the-full-wheel-story-hub-bore-offset-and-their-5-lug-connection)
- [Troubleshooting & Maintenance: Keeping Your 5-Lug Setup Safe and Sound](#troubleshooting--maintenance-keeping-your-5-lug-setup-safe-and-sound)
- [Your Go-To Resource: Where to Find Reliable Printable 5 Lug Bolt Pattern Charts](#your-go-to-resource-where-to-find-reliable-printable-5-lug-bolt-pattern-charts)
- [How to Choose the Best 5-Lug Bolt Pattern for Your Needs](#how-to-choose-the-best-5-lug-bolt-pattern-for-your-needs)
- [Common Pitfalls to Avoid When Dealing with 5-Lug Bolt Patterns](#common-pitfalls-to-avoid-when-dealing-with-5-lug-bolt-patterns)
- [Advanced Tips for Experts: Beyond the Basic 5-Lug Chart](#advanced-tips-for-experts-beyond-the-basic-5-lug-chart)
- [Conclusion: Drive Confidently, Armed with Knowledge](#conclusion-drive-confidently-armed-with-knowledge)
---
The Unsung Hero: Understanding Your 5-Lug Bolt Pattern
Every time you hit the road, the connection between your vehicle and its wheels is critical. It's not just about the tire gripping the asphalt; it's about the wheel being securely fastened to the hub. That’s where the bolt pattern, sometimes called the lug pattern or bolt circle diameter (BCD), comes in. It’s essentially the measurement of an imaginary circle drawn through the center of your wheel's lug holes. For a 5-lug wheel, this means five holes arranged in a specific pattern.
### Why is This Measurement So Crucial?
1. Safety First, Always: A mismatched bolt pattern means the wheel won't sit flush against the hub. This can lead to uneven stress on the wheel studs, vibration, premature wear, and in severe cases, the wheel literally falling off your vehicle. I once saw a friend’s project car throw a wheel at low speed because he swore a "close enough" bolt pattern would work. It didn't.
2. Proper Fitment and Alignment: The correct bolt pattern ensures the wheel mounts perfectly centered on the hub. This is vital for maintaining proper alignment, preventing steering issues, and ensuring even tire wear.
3. Preventing Damage: Trying to force a wheel onto a hub with an incorrect bolt pattern can strip lug nuts, damage wheel studs, or even crack the wheel itself. This isn't just inconvenient; it's an expensive mistake.
4. Optimizing Performance: For enthusiasts, getting the bolt pattern right is the first step in unlocking performance upgrades. The right wheels can enhance handling, braking, and even fuel efficiency.
5. Aesthetic Appeal: Let's be honest, wheels are a huge part of a vehicle's look. A properly fitted wheel looks right, sits right, and contributes to the overall aesthetic you're aiming for. No one wants their custom wheels wobbling or sticking out at odd angles.
### The Anatomy of a 5-Lug Bolt Pattern
When you see a 5-lug bolt pattern described, it typically comes in two numbers, like "5x114.3" or "5x4.5".
- The first number (5): This indicates the number of lug holes on the wheel. In our case, it's five.
- The second number (114.3 or 4.5): This is the crucial measurement – the diameter of the bolt circle. It’s either expressed in millimeters (mm) or inches (in). So, 5x114.3 means five lug holes with a bolt circle diameter of 114.3 millimeters. Similarly, 5x4.5 means five lug holes with a bolt circle diameter of 4.5 inches. (Fun fact: 114.3mm is exactly 4.5 inches, so these are actually the same pattern, just expressed differently!). This is a common point of confusion for beginners, and a good printable 5 lug bolt pattern chart will often include both measurements.
Understanding this fundamental concept is the first step to confidently navigating the world of wheels. It’s the foundation upon which all other wheel fitment knowledge is built.
---
Demystifying the Numbers: Common 5-Lug Bolt Pattern Formats
While the concept of a bolt pattern is straightforward, the sheer variety of actual measurements can be daunting. Manufacturers around the world use different standards, leading to a diverse landscape of 5-lug bolt patterns. Knowing the most common ones will give you a significant head start.
### The Heavy Hitters: Patterns You'll Encounter Most Often
1. 5x114.3mm (or 5x4.5 inches): The Universal Soldier
- Description: This is arguably the most common 5-lug bolt pattern globally, especially prevalent in Japanese, Korean, and many American vehicles.
- Common Vehicles: Honda, Toyota, Nissan, Mazda, Lexus, Infiniti, Hyundai, Kia, Ford (many models), Chrysler (many models). You'll find it on everything from a Honda Civic to a Ford Mustang.
- Why it's popular: Its widespread use makes aftermarket wheels readily available. If you're looking for a new set of rims, chances are you'll find plenty of options in this size.
- Personal Scenario: When I was helping my sister find new wheels for her older Honda Accord, knowing it was 5x114.3 immediately narrowed down our search from hundreds to dozens of compatible options, saving us hours of browsing.
2. 5x120mm: The European Standard (and more!)
- Description: This pattern is synonymous with BMW, but it's also found on many other European vehicles and increasingly on some American performance cars.
- Common Vehicles: BMW (most models), Chevrolet Camaro (5th and 6th gen), Cadillac CTS, Holden Commodore, Tesla Model S/X.
- Nuance: While primarily European, its adoption by performance-oriented American cars shows how patterns can cross traditional automotive boundaries.
- Personal Scenario: I once almost bought a set of beautiful used BMW wheels for my Chevy SS, confident they'd fit because I knew it was 5x120. That knowledge saved me from a costly mistake and ensured a perfect fit.
3. 5x100mm: The Compact Car & Subaru Favorite
- Description: Often found on smaller, compact cars and a staple for Subaru and older Toyota/VW models.
- Common Vehicles: Subaru Impreza/WRX (older generations), Toyota Corolla (older), Volkswagen Golf/Jetta (older), Chrysler PT Cruiser, Chevrolet Cavalier.
- Evolution: Many manufacturers have transitioned from 5x100 to larger patterns (like 5x114.3) on newer models as vehicles have grown in size and performance.
- Helpful Hint: If you're looking at aftermarket wheels for an older compact, this is a prime candidate.
4. 5x108mm (or 5x4.25 inches): Ford & Volvo's Choice
- Description: Predominantly used by Ford, Volvo, and some other European brands.
- Common Vehicles: Ford Focus, Fusion, Escape, Volvo S60/V60, Land Rover Evoque.
- Key Identifier: If you have a modern Ford or Volvo, there's a good chance this is your pattern.
5. 5x139.7mm (or 5x5.5 inches): The Truck & Classic Staple
- Description: A heavier-duty pattern, commonly found on older trucks, SUVs, and classic American vehicles.
- Common Vehicles: Dodge Ram (older generations), Ford F-150 (older generations), Suzuki Samurai, Jeep CJ.
- Modern Shift: Many newer full-size trucks have moved to 6-lug or 8-lug patterns, but this 5-lug remains important for many older models and custom builds.
6. 5x127mm (or 5x5 inches): The Jeep & GM Truck Pattern
- Description: Primarily associated with Jeep and older GM full-size trucks and SUVs.
- Common Vehicles: Jeep Grand Cherokee, Wrangler (JK/JL), Chevrolet Silverado (older half-ton), Tahoe, GMC Sierra.
- Off-Roaders Rejoice: If you're into off-roading, this is a pattern you'll encounter frequently.
### Less Common, But Still Important
- 5x112mm: Found on many modern Volkswagen, Audi, Mercedes-Benz, and Porsche vehicles. This is another significant European pattern.
- 5x130mm: Predominantly Porsche, but also some Volkswagen Touareg and Audi Q7 models.
- 5x110mm: Less common, but seen on some Saab, Opel, and specific GM models like the Chevy Cobalt SS.
This overview isn't exhaustive, but it covers the vast majority of 5-lug patterns you'll encounter. Having this general knowledge, combined with a precise printable 5 lug bolt pattern chart, is your secret weapon for confident wheel selection.
---
Your Essential Companion: The Printable 5 Lug Bolt Pattern Chart Explained
Alright, now we get to the core of it: the printable 5 lug bolt pattern chart. This isn't just a list of numbers; it's a critical tool that puts vehicle compatibility information right at your fingertips. Think of it as your automotive Rosetta Stone, translating complex measurements into actionable insights.
### What Makes a Good Printable 5 Lug Bolt Pattern Chart?
1. Clarity and Readability: The best charts are well-organized, with clear headings and easy-to-read fonts. You don't want to squint or guess when dealing with precise measurements.
2. Comprehensive Vehicle Coverage: A truly useful chart will list a wide range of makes, models, and years, alongside their corresponding 5-lug bolt patterns. The more comprehensive, the better.
3. Dual Measurement Units: As we discussed, patterns can be in millimeters (mm) or inches (in). A good chart will show both (e.g., 5x114.3 / 5x4.5") to avoid confusion.
4. Additional Information: Some charts go above and beyond, including hub bore size, common offset ranges, and even lug nut thread pitch. While the primary focus is the bolt pattern, these extra details are incredibly helpful.
5. Printable Format: This is key! Being able to print it out means you can take it with you to the garage, the junkyard, or the wheel shop without relying on a digital device. My own garage wall has a laminated version of a printable 5 lug bolt pattern chart—it's saved me countless trips back inside to check my phone.
### How to Effectively Use Your Printable 5 Lug Bolt Pattern Chart
1. Identify Your Vehicle: Start by locating your vehicle's make, model, and year on the chart. Be precise, as bolt patterns can change even within the same model generation. For instance, a 2005 Honda Civic might have a different pattern than a 2015 Civic.
2. Cross-Reference: Once you've found your vehicle, note its listed 5-lug bolt pattern. This is your target measurement for any new wheels.
3. Check Potential Wheels: If you're looking at aftermarket wheels, use the chart to see which vehicles they were originally designed for. This can give you clues about their bolt pattern. Better yet, if the seller provides the bolt pattern, you can directly compare it to your vehicle's requirement.
4. Verify with Physical Measurement (Optional, but Recommended): While the chart is a fantastic guide, a quick physical measurement of your existing wheel (if possible) or hub can provide an extra layer of verification, especially if you're dealing with an older or modified vehicle. We'll cover how to do this in the next section.
5. Consider "Close Enough" Warning: If the chart shows 5x114.3 and the wheel you're looking at is 5x112, DO NOT assume it's "close enough." It's not. Precision is critical. The chart helps you avoid these dangerous assumptions.
6. Troubleshooting: If you're having trouble fitting a wheel, consult the chart. It might quickly reveal that you've got a mismatch in bolt patterns, saving you from forcing anything and causing damage. I once saw a DIYer trying to hammer a wheel onto a hub – a quick glance at a printable 5 lug bolt pattern chart would have shown him the patterns were off by a few millimeters, preventing potential irreversible damage.
### Where to Get a Reliable Printable 5 Lug Bolt Pattern Chart
- Reputable Automotive Websites: Many well-known automotive parts retailers, wheel manufacturers, and enthusiast forums offer free, downloadable charts.
- Vehicle-Specific Forums: Sometimes, the most accurate charts are compiled by dedicated enthusiasts on vehicle-specific forums.
- Wikipedia & Automotive Databases: Sites like Wheel-Size.com or Wikipedia often have extensive, user-contributed databases that can be cross-referenced.
Always cross-reference information from multiple sources if possible, especially when dealing with older or rare vehicles. A reliable printable 5 lug bolt pattern chart is your first line of defense against fitment nightmares.
---
Beyond the Chart: Mastering Manual 5-Lug Bolt Pattern Measurement
While a printable 5 lug bolt pattern chart is an invaluable resource, knowing how to manually measure a 5-lug bolt pattern is a skill that will empower you further. Charts are great for confirmation, but sometimes you're dealing with an unmarked wheel, a custom setup, or just want to double-check. Don't be intimidated; it's simpler than you think!
### Tools You'll Need:
- Ruler or Tape Measure: A good quality, clear ruler or flexible tape measure is essential.
- Caliper (Optional, but Recommended): A digital or analog caliper offers greater precision for measuring distances.
- Straight Edge (Optional): A straight edge can help with accuracy, especially for odd-numbered lug patterns.
- Pen and Paper: To jot down your measurements.

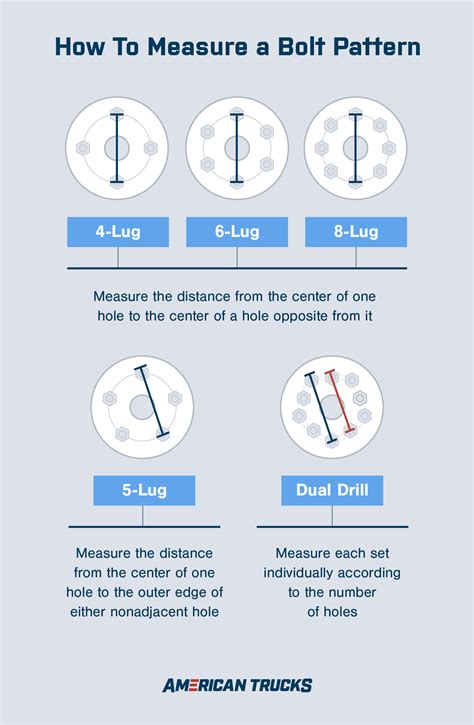

### The 5-Lug Measurement Method (The "Center-to-Opposite-Center" Trick)
Measuring an odd-numbered bolt pattern (like 5-lug) is different from an even-numbered one (like 4-lug or 6-lug), where you can simply measure from the center of one hole to the center of the opposite hole. For 5-lug, you need a slightly different approach:

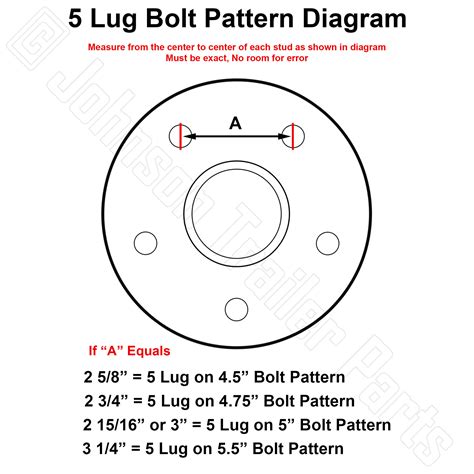

1. Identify Two Adjacent Holes: Pick any two lug holes that are next to each other.
2. Measure Center-to-Center of Adjacent Holes: Carefully measure the distance from the *center* of one lug hole to the *center* of an adjacent lug hole. Get this measurement as accurately as possible. Let's call this measurement 'A'.
3. Measure Center-to-Center of the Hub: Measure the distance from the center of the wheel's hub bore (the large center hole) to the center of any lug hole. Let's call this measurement 'B'.

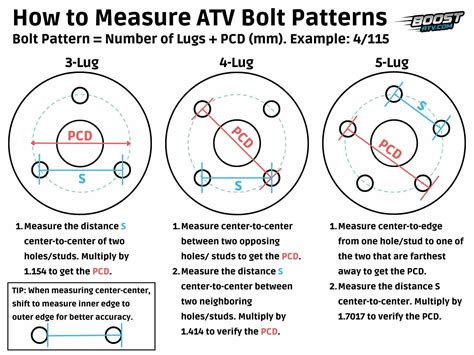

4. Use the Formula (The Easy Way):
- For 5-lug patterns, the bolt circle diameter (BCD) can be calculated using the following formula:
- BCD = A / 0.5878 (if 'A' is the distance between adjacent holes)
- Alternatively, BCD = 2 * B / cos(36) (if 'B' is the distance from hub center to lug hole center)
- The Simpler, More Practical Method (for 5-lug):
- Instead of complex formulas, the most common and practical way to approximate a 5-lug BCD without special tools is to measure from the back edge of one lug hole to the center of an opposing lug hole (not directly opposite, but one that is roughly across). This is less precise but can give you a rough idea.
- The *Most* Accurate Manual Method Without Special Tools:
1. Mark Your Spot: Place a ruler or tape measure across the center of the hub.
2. Align Two Holes: Align the ruler so it passes through the center of one lug hole.
3. Measure to the Farthest Edge: Measure from the outer edge of that lug hole across to the center of the *farthest* lug hole on the opposing side (it won't be perfectly opposite, but it will be the one that completes the largest diameter across the pattern).
4. Subtract Half a Hole: To get the true center-to-center measurement, subtract half the diameter of one lug hole from your measurement. This takes practice.
### The Professional Tool Method (For Ultimate Accuracy):
- Bolt Pattern Gauges: These are specialized, inexpensive tools that have arms or pins designed to fit into lug holes and directly read the bolt pattern. This is by far the easiest and most accurate method. I keep one in my toolbox at all times; it's a small investment that pays off big.
- Wheel Measuring Devices: More advanced tools exist that clamp onto the wheel and provide precise measurements for bolt pattern, offset, and hub bore.
### Tips for Accurate Measurement:
- Cleanliness: Ensure the wheel or hub is clean and free of dirt or rust that could affect your measurements.
- Consistency: Always measure from the *center* of the lug holes. If you're using the "back edge to center" trick, be consistent in your starting and ending points.
- Multiple Measurements: Take your measurements a few times to ensure consistency. A slight variation can make a big difference.
- Convert Units: If you measure in inches, convert to millimeters (multiply by 25.4) to compare with common metric charts, or vice versa.
- Don't Rush: Precision takes patience. Rushing can lead to costly errors. My personal rule: when in doubt, measure twice, then check a printable 5 lug bolt pattern chart!
Mastering manual measurement, even if it's just for rough estimation or double-checking, gives you a powerful layer of confidence beyond simply consulting a chart.
---
Vehicle-Specific Wisdom: Matching Your Ride with the Right 5-Lug Pattern
While general charts are fantastic, diving into vehicle-specific bolt pattern information is where the rubber truly meets the road. Manufacturers often stick to certain patterns for their various models and generations, but there are always exceptions and transitions. Knowing your specific vehicle's needs is paramount.
### How Manufacturers Determine Bolt Patterns
1. Vehicle Class and Weight: Heavier vehicles and those designed for higher performance generally use larger bolt patterns (e.g., 5x127mm for SUVs, 5x120mm for performance sedans) to distribute load more effectively and ensure stronger wheel-to-hub connection.
2. Brake Clearance: Larger brakes (common on performance or heavy-duty vehicles) require wheels with specific designs and often wider bolt patterns to clear calipers.
3. Brand Consistency: Many manufacturers (like BMW with 5x120mm or Honda/Toyota with 5x114.3mm) maintain a consistent bolt pattern across a significant portion of their lineup for ease of manufacturing and aftermarket compatibility.
4. Evolution and Generations: As vehicles evolve, so can their bolt patterns. A new generation of a car might move from 5x100mm to 5x114.3mm to accommodate larger brakes, improved handling, or simply align with new platform designs. This is why "year" is so important when consulting a printable 5 lug bolt pattern chart.
### Popular Vehicle Makes and Their Common 5-Lug Patterns:
1. Honda/Toyota/Nissan/Mazda (and many Asian brands): The undisputed champions of 5x114.3mm (5x4.5"). From Civics to Camrys, Accords to Altimas, this pattern is incredibly widespread. Many SUVs and smaller trucks from these brands also utilize it.
2. BMW: Almost exclusively 5x120mm for most of their modern passenger cars. This is a strong identifier.
3. Mercedes-Benz/Audi/Volkswagen (modern): Predominantly 5x112mm. If you're looking at a newer German luxury car, this is your likely pattern.
4. Ford (various models): A mix. Many older models and some smaller current ones are 5x114.3mm. Newer Focus, Fusion, and Escape models often use 5x108mm. Trucks like the F-150 might be 5x139.7mm (5x5.5") or even 6-lug depending on the year.
5. Chevrolet/GMC: Many older full-size SUVs and half-ton trucks use 5x127mm (5x5"). Performance cars like the Camaro (newer generations) use 5x120mm.
6. Subaru: Older Imprezas, Foresters, and Legacys commonly use 5x100mm. Newer, more performance-oriented models (like the WRX STI) have transitioned to 5x114.3mm. This is a classic example where checking the specific year and model matters.
7. Jeep: The Wrangler JK/JL and Grand Cherokee often use 5x127mm (5x5"), making it a very common pattern for the off-road crowd. Older CJs used 5x139.7mm (5x5.5").
### Leveraging Your Printable 5 Lug Bolt Pattern Chart for Vehicle-Specific Needs:
- Start with Your Owner's Manual: Often, the bolt pattern (and other critical wheel specs) are listed in your vehicle's owner's manual. This is the most authoritative source.
- Online Databases: Websites like Wheel-Size.com or reputable wheel retailers have extensive databases where you can search by make, model, and year to find the precise bolt pattern. This information is often compiled directly from manufacturer data.
- Dealership Parts Department: If all else fails, your local dealership's parts department can tell you exactly what bolt pattern your vehicle came with, usually by VIN.
- Forum Wisdom (with caution): Vehicle-specific forums are treasure troves of information, but always cross-reference. What worked for "Slydogg69" might not be exactly right for your specific trim level or year.
My personal experience with a classic car taught me the value of this. I was restoring an old muscle car, and while a generic printable 5 lug bolt pattern chart gave me a starting point, digging into forums specific to that model year revealed subtle variations in hub size and bolt pattern depending on the original engine and brake package. That extra research saved me from buying wheels that wouldn't clear the calipers! This level of detail is why a good chart, backed by vehicle-specific research, is unbeatable.
---
The Perils of Mismatch: Why 5-Lug Bolt Pattern Precision is Non-Negotiable
We've talked about what a bolt pattern is and how to identify it. Now, let's get serious about why getting it *exactly* right is not just a recommendation, but a critical safety requirement. Trying to force a wheel with an incorrect 5-lug bolt pattern onto your vehicle is like trying to fit a square peg in a round hole – except in this case, the consequences are far more severe than just a stuck peg.
### The Dangers of "Close Enough"
1. Uneven Stress on Studs and Lug Nuts: This is the most immediate and dangerous consequence. If the bolt pattern is even slightly off (e.g., trying to put a 5x112mm wheel on a 5x114.3mm hub), the lug nuts will not sit flush or apply even clamping force. Some studs will bear more load than others, leading to:
- Stripped Threads: Both on the lug nuts and the wheel studs.
- Sheared Studs: Under stress, especially when cornering or braking, the weaker studs can snap off.
- Cracked Lug Holes: The wheel itself can crack around the lug holes due to uneven pressure.
- Catastrophic Wheel Separation: In the worst-case scenario, the wheel can completely detach from the vehicle while driving. This is not just a breakdown; it’s a life-threatening event. I've heard horror stories from tow truck drivers about wheels coming off at highway speeds – it's terrifying.
2. Vibration and Ride Quality Issues: Even if the wheel doesn't immediately fall off, an improper fit will cause vibrations that range from annoying to dangerously distracting. This vibration isn't just uncomfortable; it puts undue stress on suspension components, bearings, and even steering linkages, leading to premature wear.
3. Accelerated Component Wear:
- Wheel Bearings: The consistent, uneven load from a misaligned wheel will quickly wear out your wheel bearings, leading to humming noises, play in the wheel, and eventually failure.
- Suspension Components: Bushings, ball joints, and tie rods will experience increased stress and wear.
- Tires: Uneven tire wear patterns will emerge, costing you money and potentially compromising traction.
4. Brake Performance Degradation: A wobbling wheel or one not perfectly concentric with the hub can affect how your brakes operate, leading to pulsing, reduced effectiveness, and even brake component damage.
5. Aesthetic Disaster: Beyond safety, it simply looks wrong. The wheel won't sit properly, might stick out or rub, and instantly screams "amateur hour." You've invested time and money in your wheels; don't compromise the look or safety for a "nearly" fitment.
### Common Misconceptions to Avoid:
- "It's only a millimeter, it'll be fine!": That millimeter, when multiplied across the diameter of the wheel and under the stress of hundreds of horsepower and braking forces, becomes a critical error. Modern manufacturing
